CALGAVIN.SP® V7

With more than 45 years of enhanced heat exchanger design experience and more than 20,000 hiTRAN® enhanced heat exchanger bundle installation worldwide, we are proud to release our latest version of CALGAVIN.SP® V7, the enhanced plug-in for HTRI Xchanger Suite® and Aspen Exchanger Design & Rating.

What is CALGAVIN.SP?

The CALGAVIN.SP software integrates with HTRI Xchanger Suite® and Aspen Exchanger Design & Rating, two of the most powerful heat exchanger design software packages on the market to rate and simulate tubular heat exchangers. The underlying correlations for our hiTRAN® CALGAVIN.SP plug-in are derived from our state of the art in-house test facilities. It can be downloaded by users that have signed up for our portal access, which can be found here.

For users without access to HTRI or Aspentech software, CALGAVIN.SP can run via hiTRAN.SP® as a standalone selection program to calculate the tube side performance of heat exchangers equipped with hiTRAN®.

Key Highlights

Integrates seamlessly with Xchanger Suite® (32-bit & 64-bit, V6.3 – V9.3)
Fully compatible with AspenTech EDR (V10 and V14onwards. Regained 64-bit compatibility for faster and more reliable performance)

Features & Benefits

Accurate hiTRAN tube-side heat transfer & pressure drop calculations
Automatic hiTRAN® geometry selection for optimum performance

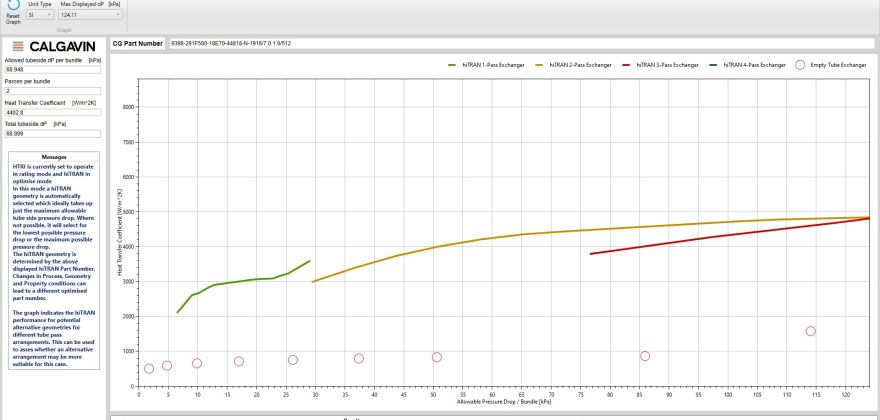

Graphical performance panel for quick screening
Wall correction factors for precise results
U-tube mode
Derating for long tubes – improves accuracy in air-cooler exchangers (up to 20% error prevention).

Backed by Proven Research

Warranted tube-side heat transfer & pressure drop performance
Tested across wide viscosity: (Heat transfer & Lube Oils; Glycerol water mixtures; water; refrigerants; hydrocarbons; gases (compressed dry air, nitrogen)
Covers tube sizes 10mm (3/8”) to 46mm (1.75”) OD
Correlations optimised from 1,000+ hiTRAN® geometries
ISO 9001 certified UK manufacturing
Tested across dimensionless number ranges:

o Tubeside Reynolds Number range: 0.1 < Re < 200000

o Tubeside Prandtl Number range: 0.5 < Pr < 12000

Get Started Today!
Your new version is ready to download via the CALGAVIN Portal. Simply log in with your existing account and access the installer here:

Download CALGAVIN.SP

If you have any questions about installing or using CALGAVIN.SP® V7, our support team is here to help, and whilst you are there, why not explore:
